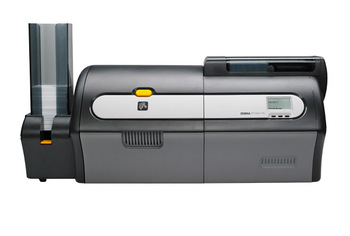

Zebra ZXP7 Double Sided

Code: 2010361PRINTER

Zebra ZXP7

Double Sided Student ID Card Printer

Zebra ZXP7 Series Double Sided ID Card Printer - Utilising the latest in card-printing technology, the ZXP Series 7™ card printer provides high-quality card printing. The printer delivers fast and reliable performance, while offering users exceptional value by lowering the printer’s total cost of ownership. Time after time, it prints sharp vivid cards with precise color control.

Compact Design Filled with Powerful Features.

The ZXP Series 7 printer has an innovative design. It automatically adjusts to the thickness of the card, and ribbon loading is easy. With color-coded guides and a clear LCD control panel, it’s simple for anyone to use.

Choose from numerous encoding, connectivity and ribbon options, and if extra security or durability is needed for cards, wasteless single-or dual-sided lamination is also available.

Locking mechanisms protect the printer and media, and software provides further security by tracking and restricting activitiesas required

Ideal for these ID Card Applications:

Government - Swipe ID Cards
Healthcare - Lanyard ID Cards
Schools - Student ID Cards
Universities - Student ID Cards
Retail - Membership ID Cards

The ZXP Series 7 printer is built to meet the needs of today’s demanding business environment:

• Robust design that works out of the box in a wide range of environments and applications
• Generates near-photographic print quality and color depth using photo-print technology
• Edge-to-edge card printing
• Laminator ensures security of the cards and lengthens the life of the image

Productivity: high speeds and low maintenanceThe ZXP Series 7 printer features fast print speeds that improve productivity and reduce wait time.

• Fast click-to-drop and batch print speeds
• Up to three jobs can be in process at the same time (encoding, printing and laminating simultaneously), enabling fastest throughput
• ix Series™ ribbons are developed for faster printing
• Simultaneous dual-sided lamination

Ease of integration and low maintenance are ensured by:

• High-capacity media
• Ribbon and laminate rolls are synchronized
• Simplified ribbon loading and operation
• Windows® drivers, ZMotif™SDK and networking options for faster deployment

STANDARD FEATURES:

• 300 dpi/11.8 dots per mm print resolution
• USB 2.0 and Ethernet 10/100 connectivity
• Microsoft® Windows Certified drivers
• 200-card capacity feeder (30 mil)
• 15-card reject hopper (30 mil)
• 100-card output hopper (30 mil)
• Single-card feed capability
• ix Series intelligent media technology
• 21-character x 6-line LCD operator display with configurable soft keys
• Kensington® physical lock slot
• Two-year unlimited warranty on printer and printhead

PRINTING SPECIFICATIONS

Color dye sublimation or monochrome thermal-transfer printing
Single- and dual-sided printingNear photographic print quality
Edge-to-edge printing on standard CR-80 mediaSimultaneous printing, encoding, and laminating capability
One-pass single- and dual-sided wasteless lamination
1375 cards / hour monochrome single-sided or 555 cards / hour dual sided printing
300 cards / hour full-color YMCKO single-sided printing
225 cards / hour full-color YMCKOK dual-sided printing
270 cards / hour full-color YMCKO single-sided printing with lamination
200 cards / hour full-color YMCKOKO dual-sided printing with lamination

NOTE: Printing throughput (cards per hour) based on batch printing with USB connectivity. Times may vary depending on the computer configuration.

MEDIA SPECIFICATIONS

Card Compatibility

For optimum card quality and printer performance, use genuine Zebra card supplies.

• Card thickness: 10 – 50 mil (0.25 – 1.27 mm)

• Card thickness for lamination: 30 mil (0.76 mm)

• Card size: CR-80, ISO 7810 format, Type ID-1

• Card material: PVC and composite, ABS cards, PET, PET-G, PET-F, PETix, and Teslin® composite

• Technology cards: contact and contactless smart cards

• Specialty cards: adhesive backed, signature panel, transparent cards with IR-blocker

PHYSICAL CHARACTERISTICS - DOUBLE SIDED

Length10.9"/277 mm

Width

Printer only: 27.5"/699 mm

Printer with laminator: 38"/964 mm

Height12"/306 mm

WeightPrinter only: 26.9 lbs/12.2 kg

Printer with laminator: 39.5 lbs/17.9 kg

OPTIONAL FEATURES

Single-sided laminator

Lockable enclosures and card feeder

Extended product warranty programs

802.11b/g wireless connectivity

1D barcode scanner

Duo-Print upgrade kit

Encoding Options and Specifications:

• Magnetic stripe encoder — AAMVA and ISO 7811 (new and pre-encoded, tracks 1, 2, and 3, high and low coercivity)

• ISO 7816 Smart Card Contact Station for third-party external contact encoders

• Combined MIFARE® ISO 14443 A and B (13.56MHz) contactless and ISO 7816 Contact Encoder with EMV level 1 certification, and PC/SC compliance (supported over USB and Ethernet)

• EPCglobal® Gen 2 UHF RFID encode
