TSC TX200 Thermal Transfer Printer
Code: 99-053A001-0004
$1025.20 (inc GST)
$932.00 (exc GST)
$932.00 (exc GST)
Qty:

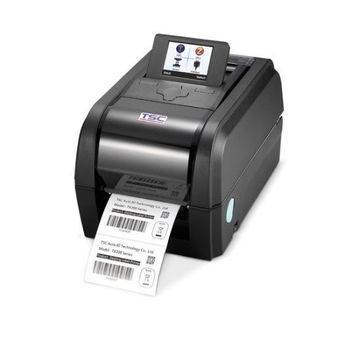

TSC TX200 Thermal Transfer Barcode Printer
The TX200 thermal transfer desktop barcode printer supports more printing applications than any other printer in its class.The four inch wide TX200 can address everything from higher volume 4x6 shipping labels, higher resolution product marking and graphic solutions, to high resolution labels used in electronics marking applications.
The TX200 is the culmination of 23 years of designing best-selling high-performance and durable desktop printers. The printers use a large 300 meter ribbon supply on a one inch core that saves both time and money. The TX200 features a user-friendly spring-loaded center-biased clamshell design for easy drop-in media loading of 5-inch rolls of media. The printer construction features a rugged double-wall design that is stronger and more durable than other thermal transfer mechanisms on the market. Its strong motor is powerful enough to handle a 300-meter-long ribbon.
Standard interfaces include USB 2.0, USB-A Host, 10/100 Mbps Ethernet and Serial connectivity. Optional communications interfaces include Bluetooth, 802.11a/b/g/n Wi-Fi and Centronics Parallel. Printer options include a bright, color LCD display, label peel and present, and cutter.
As with all TSC printers, the TX200 Series features the TSPL-EZ printer-control language, which is fully compatible with other TSC printer languages, while supporting TPLE (Translation Printer Language Eltron®) and TPLZ (Translation Printer Language Zebra®). The languages automatically decipher and translate the format of each label as it is sent to the printer. TSPL-EZ also features internal scalable True Type fonts (based on the Monotype® font engine), which are typically found only in more expensive printers.
Perfect for the Following Uses:
- Business/Office
- Product Marking
- Compliance Labeling
- Asset Tracking
- Document Management
- Shelf-Labeling
- Shipping/Receiving
- Specimen Labeling
- Inventory Control
- Patient Tracking
Printer Specifications include:
| Model | TX200 | |
| Print Specification | Resolution | 8 dots/mm (203 DPI) |
| Max. print speed | 203 mm (8")/second | |
| Max. print width | 108 mm (4.25") | |
| Max. print length | 25,400 mm (1,000") | |
| Printing method | Thermal Transfer & Direct Thermal | |
| LCD/LED | LCD/LED | LED panel with 8 big icons |
| Memory | SDRAM | 128 MB |
| Flash | 128 MB | |
| Extension | microSD card reader for Flash memory expansion, up to 32 GB | |
| Ribbon & Media Capacity | Ribbon capacity | 300 m long, max. OD 67 mm, 1" core (ink coated outside) |
| Ribbon width | 40 mm ~ 110 mm (1.6" ~ 4.3") | |
| Media type | Continuous, die-cut, black mark, fan-fold, notch (outside wound) | |
| Media width | 19 ~112 mm (0.75" ~ 4.4") | |
| Media thickness | 0.055 ~ 0.254 mm (2.17 ~ 10 mil) | |
| Media core diameter | 25.4 ~ 38.1 mm (1" ~ 1.5") | |
| Media length | 3 ~ 25,400 mm (0.1" ~ 1,000") | |
| Media roll capacity | 127 mm (5") OD | |
| Interface | Standard | • USB 2.0 |
| • RS-232 | ||
| • Ethernet | ||
| • 10/100 Mbps | ||
| • USB Host | ||
| Options | • Parallel | |
| • (slot-in) 802.11 a/b/g/n Wi-Fi | ||
| Software Support | Software support | SAP, Oracle, WHQL 8.1, Windows, Linux, MAC X.10, Mircosoft SQL Server, Bartender, Nice Label |
| Physical characteristics | Dimension | 226 mm (W) x 198 mm (H) x 332 mm (D) |
| 8.90" (W) x 7.80" (H) x 13.07" (D) | ||
| Weight | 3.75 kg (8.27 lbs) | |
| Print Specification | Resolution | 8 dots/mm (203 DPI) |
| Max. print speed | 203 mm (8")/second | |
| Max. print width | 108 mm (4.25") | |
| Max. print length | 25,400 mm (1,000") | |
| Printing method | Thermal Transfer & Direct Thermal | |
| LCD/LED | LCD/LED | LED panel with 8 big icons |
| Memory | SDRAM | 128 MB |
| Flash | 128 MB | |
| Extension | microSD card reader for Flash memory expansion, up to 32 GB | |
| Ribbon & Media Capacity | Ribbon capacity | 300 m long, max. OD 67 mm, 1" core (ink coated outside) |
| Ribbon width | 40 mm ~ 110 mm (1.6" ~ 4.3") | |
| Media type | Continuous, die-cut, black mark, fan-fold, notch (outside wound) | |
| Media width | 19 ~112 mm (0.75" ~ 4.4") | |
| Media thickness | 0.055 ~ 0.254 mm (2.17 ~ 10 mil) | |
| Media core diameter | 25.4 ~ 38.1 mm (1" ~ 1.5") | |
| Media length | 3 ~ 25,400 mm (0.1" ~ 1,000") | |
| Media roll capacity | 127 mm (5") OD | |
| Interface | Standard | • USB 2.0 |
