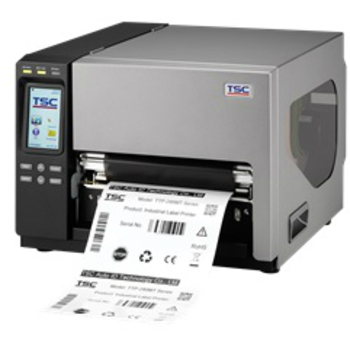

TSC TTP-286MT Thermal Transfer Barcode Printer
Download pdf Brochure (704 KB)TTP-286MT Series can accommodate label widths up to 9.5 inches, with a maximum print width up to 8.64 inches at 300 dpi resolution and 8.5 inches at 203 dpi resolution. It also is designed to print wide-lateral bar codes without the need for image rotation.
Enhanced High Speed Performance, Color Touch Display
TTP-286MT Series features a new faster processor, and all the memory customers will need to print high quality labels at the fastest speeds.
High Speed Performance, More memory
The TTP-286MT Series features increased memory of 512 MB Flash and 256 MB SDRAM. Internal Ethernet, USB 2.0, USB host, parallel and serial interfaces come standard.
A Colorful Choice
The new TTP-286MT Series comes with a high-contrast 4.3” color touch LCD panel with 6 button control user friendly design for simple printer set up and job status.
Loaded with Standard Features
The TTP-286MT Series features a rigid, full die-cast aluminum frame designed to last in tough environments and supports a large 8.2 inch outer diameter label roll and up to 600 meter ribbon capacity for high volume printing. The TTP-286MT Series features a center-bias label handling mechanism that makes media loading and adjustment easy.
Because our printers our built to last, we back them with a standard two-year limited warranty.
Powerful TSPL-EZ™ Printer Programming Language
TTP-286MT Series features the TSPL-EZ™ printer-control language, a fully compatible set of standard industry emulations, including Line Mode, Eltron® and Zebra® languages and will work in many IT environments including Oracle, SAP, Unix, AS/400, Windows, Stand Alone, and many more.
Printer Specifications include:
| Model | TTP-286MT | |
| Print Specification | Resolution | 8 dots/mm (203 DPI) |
| Max. print speed | 152 mm (6")/second | |
| Max. print width | 216 mm (8.5") | |
| Max. print length | 11,430 mm (450") | |
| Printing method | Thermal Transfer & Direct Thermal | |
| LCD/LED | LCD/LED | 16 bits Color, 480 x 272 pixels, with back lights, Resistive Touch Screen |
| Memory | SDRAM | 256 MB |
| Flash | 512 MB | |
| Extension | SD Flash memory card reader for Flash memory expansion, up to 32 GB | |
| Ribbon & Media Capacity | Ribbon capacity | 600 m long, Max. 90 mm OD, 1" core (ink coated outside) |
| Ribbon width | 110 mm ~ 254 mm (4.3" ~ 10") | |
| Media type | Continuous, die-cut, fan-fold, tag, notched, black mark, perforated (outside wound) | |
| Media width | 101.6 ~ 241.3 mm (4" ~ 9.5") | |
| Media thickness | 0.06 ~ 0.254 mm (2.36 ~ 10 mil) | |
| Media core diameter | 76.2 mm (3") | |
| Media length | 25.4 ~ 11,430 mm (1" ~ 450") | |
| Media roll capacity | 208.3 mm (8.2") OD | |
| Interface | Standard | • USB 2.0 |
| • RS-232 | ||
| • Parallel | ||
| • Ethernet, 10/100 Mbps | ||
| • USB Host | ||
| Options | • GPIO | |
| Software Support | Software support | Oracle, WHQL 8.1, Windows, Linux, MAC X.10, Microsoft SQL Server, BarTender, Nice Label |
| Physical characteristics | Dimension | 440 mm (W) x 336 mm (H) x 514 mm (D) |
| 17.32" (W) x 13.23" (H) x 20.24" (D) | ||
| Weight | 23.7 kg |
