TSC MB240 2.4 with Peel-Off Kit
Code: 98-0680031-00LF
DEMO

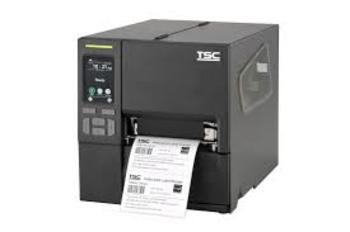

TSC MB240 Barcode Label Printer with Peel Off Kit - Demo Clearance Model
The TSC MB240 is a smaller industrial barcode label printer that is designed to fit into more work areas than ever before. The MB240 features a compact footprint, durable and flexible design, ease of use, noise-reduced printing, self-diagnostic TPH Care and tool-less maintenance. The ML240 Series is available in 203 and 300 dpi print resolutions. The printer incorporates a robust die-cast aluminum print mechanism engine that is ideal for light industrial duty printing.
Streamlined and Small Footprint Design
Compared to our bestselling TSC ME240 Series, the ML240 Series is 34% smaller. Compared to TSC TTP-244M Pro Series, the ML240 Series is 23% smaller. The small footprint design saves more space and fits in limited operation areas.
Robust and Agile Design for Optimal Quality
The combination of rugged die cast, modularized base and adjustable TPH module design structure optimizes print quality.
Noise-Reduction Printing Engineering
With enhanced design and printing algorithm, the ML240 Series can achieve a significant reduction in the noise generated during printing operation.
Self-Diagnostic TPH Care Mechanism
The ML240 Series incorporates an advanced mechanism allowing for real-time printhead health status detection. It can stop printing errors to ensure stable and high quality printouts. Not having to reprint labels reduces cost and eliminates supplies waste.
Effortless User Operation with Color Display
The ML240 Series has a user friendly design providing a wide open angle for easy media handling. It's ease of use 2.3" color GUI display and real-time LED indicator is designed to be intuitive making printer operation effortless.
One Step Maintenance
No tools are required to remove and replace both the printhead and platen roller, saving time for more important tasks.
APPLICATIONS
- Warehouse & Logistics
- Packing
- Order Fulfilment
- Shipping/Receiving
- Inventory Management
- Manufacturing
- Work In Process
- Product Marking
- Compliance Labeling
- Healthcare
- Blood Test Tube Label
- Patient Wristband Label
- Retail
- Product Label
- Event Ticketing
Printer Specifications Include:
| Model | MB240 | |
| Print Specification | Resolution | 8 dots/mm (203 DPI) |
| Max. print speed | 152 mm (6”)/second | |
| Max. print width | 108 mm (4.25") | |
| Max. print length | 2,794 mm (110") | |
| Printing method | Thermal Transfer & Direct Thermal | |
| LCD/LED | LCD/LED | • 1 status indicator |
| Memory | SDRAM | 16 MB |
| Flash | 8 MB | |
| Ribbon & Media Capacity | Ribbon capacity | 450 m long, max. O.D. 81.3 mm, 1“ core (ink coated outside or inside) |
| Ribbon width | 40 mm ~ 110 mm (1.6” ~ 4.3”) | |
| Media type | Continuous, die-cut, black mark, fan-fold, notched (outside wound) | |
| Media width | 20 ~ 118 mm (0.8" ~ 4.7") | |
| Media thickness | 0.06 ~ 0.19 mm (2.36 ~ 7.48 mil) | |
| Media core diameter | 25.4 mm ~ 38.1 mm (1” ~ 1.5”) | |
| Media length | 5 ~ 2,794 mm (0.2" ~ 110") | |
| Media roll capacity | 139.7 mm (5.5“) O.D., 1” or 1.5” I.D core | |
| Interface | Standard | • USB 2.0 |
| Options |
• Internal Bluetooth 4.2 MFi (factory option) • GPIO (dealer option) • Slot-in 802.11 a/b/g/n wireless (dealer option) |
|
| Software Support | Software support | Windows, Oracle, Microsoft SQL Server, BarTender, Nice Label |
| Physical characteristics | Dimension | 248 mm (W) x 245 mm (H) x 330 mm (D) 9.76" (W) x 9.65" (H) x 12.99" (D) |
| Weight | 7.4 kg (16.31 lbs) |
