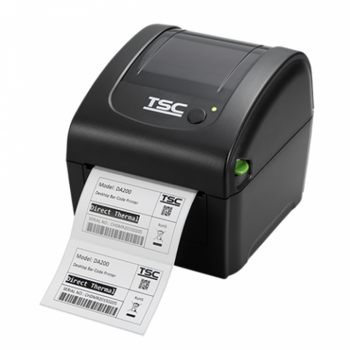

TSC DA220 Barcode Label Printer
$466.00 (exc GST)
TSC DA220 Direct Thermal Barcode Printer
The DA220 Series of direct thermal desktop printers are ideal for a wide variety of applications including product marking, point of sale, retail, small office, shipping labels, and other labelling and tag applications at a very competitive price.
The DA220 Series is a perfect combination of affordability with a durable and reliable design. The DA220 series offers both 203 and 300 dots per inch print resolution with printing speeds up to a fast 6 inches per second. The large 60 watt power supply produces high quality printed labels, even at its fastest print speeds.
Affordable
The low cost DA220 and DA320 models are priced right and have the features you need for most basic label printing needs using a USB 2.0, Wifi or optional Bluetooth interface.
Wireless and Hardwire Communications
Need more communications power? The DA220 and DA320 models have more memory and support every communications option you could need including Serial RS-232, Ethernet, USB host, internal 802.11 a/b/g/n wireless, or internal Bluetooth.
Emulations and More
The DA220/DA320 has plenty of memory with 128 MB Flash & 64 MB DRAM that can be used for easy storage of fonts, international character sets and graphics, and it supports, "right out of the box," a fully compatible set of standard industry emulations, including Line Mode, Eltron®, Zebra® and Datamax languages, making it easy to replace old installed hardware.
Features:
- High quality double-walled clamshell design
- 6 inches per second print speed
- 64 MB SDRAM and 128 MB Flash memory (DA220/DA320)
- Easy media loading
- USB 2.0 (High speed mode)
- TSPL-EZ firmware emulates Eltron® and Zebra® languages out of the box
- Mac Compatible
- Bluetooth 4.0
- 802.11 a/b/g/n (DA220/DA320)
- ENERGY STAR® qualified
- Business/Office
- Product Marking
- Compliance Labeling
- Asset Tracking
- Document Management
- Shelf-Labeling
- Shipping/Receiving
- Specimen Labeling
- Inventory Control
- Patient Tracking
TSC DA220 Direct Thermal Barcode Printer
Resolution |
8 dots/mm (203 DPI) |
|
|
|
|
Max. print speed |
152.4 mm (6")/second |
|
|
|
|
Max. print width |
108 mm (4.25") |
|
|
|
|
Max. print length |
2,794 mm (110") |
|
|
|
|
Printing method |
Direct Thermal |
|
|
|
|
LED |
LED |
1 LED (3 colors: green, amber & red) |
|
|
|
Memory |
SDRAM |
64 MB |
|
|
|
Flash |
128 MB |
|
|
|
|
Extension |
N/A |
|
|
|
|
Ribbon & Media Capacity |
Ribbon capacity |
N/A |
|
|
|
Ribbon width |
N/A |
|
|
|
|
Media type |
Continuous, black mark, fan-fold, notched (outside wound) |
|
|
|
|
Media width |
19 ~ 114 mm (0.7" ~ 4.5") |
|
|
|
|
Media thickness |
0.055 ~ 0.19 mm (2.16 ~ 7.48 mil) |
|
|
|
|
Media core diameter |
25.4 ~ 38 mm (1" ~ 1.5") |
|
|
|
|
Media length |
10 ~ 25,400 mm (0.39" ~ 1100") |
|
|
|
|
Media roll capacity |
127 mm (5") OD |
|
|
|
|
Interface |
Standard |
• USB 2.0 (High speed mode) • Ethernet • Serial RS-232 • USB Host |
|
|
|
Options |
• Internal Bluetooth (factory option) • Wi-Fi (factory option) |
|
|
|
|
Software Support |
Software support |
Oracle, WHQL 8.1, MFi, Windows, Linux, MAC X.10, Microsoft SQL Server, BarTender, Nice Label |
|
|
|
Physical characteristics |
Dimension |
172 mm (W) x 165 mm (H) x 195 mm (D) |
|
|
|
Weight |
1.5 kg (3.31 lbs) |
|
|
|
