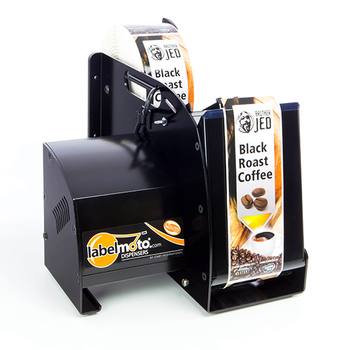

START International LD8050 Semi-Automatic Label Dispenser


The START International LD8050 high-speed electric label dispenser updates the LD5500. It dispenses long packaging-type labels and die-cut parts made from paper, polyester, vinyl, acetate, foil, and other materials. The LD8050 has a photosensor, which ensures that the unit peels, dispenses, and advances accurately and consistently.

The liner scrap is automatically rewound for a clean working environment. No tools are required to adjust the dispenser for different label sizes. It also has an adjustable strip plate for hard-to-release labels. The dispenser has a high-torque motor to handle the weight of large-diameter label rolls, with a maximum outside roll diameter of 12"/305 mm.

The dispenser housing is made from anodized aluminum for durability. The LD8050 label dispenser operates on 100/120 VDC at 50/60 Hz. This label dispenser is made in the U.S. It is suitable for industrial uses such as manufacturing, assembly, and packaging.



Features:

  • Electric label dispenser for long packaging-type labels made of paper, polyester, vinyl, acetate, foil, and other materials
  • Accepts 1"/25 mm and 3"/76 mm roll core sizes; 12"/305 mm maximum outside roll diameter
  • For labels 0.25 to 5" (6 to 127 mm) wide and 0.5 to 12" (13 to 305 mm) long
  • Feed speed is 3.9"/99 mm per second
  • High-torque motor for large-diameter label rolls
  • For a faster feed speed make sure to order the LD8100



Product Specifications

Model #LD8050

Liner Capacity Width.25 to 5

Label Length .5 to 12

Roll Capacity 12

Feed Speed* 3.9" Per Second

Dimensions 14.4”(L) x 11.9”(W) x 10.4”(H) 36.6(L) x 30.2(W) x 27.7cm(H)

Weight 4.0KG

Electrical Requirements -100/120V 50/60Hz, <1 amp (230V 50/60Hz available)
