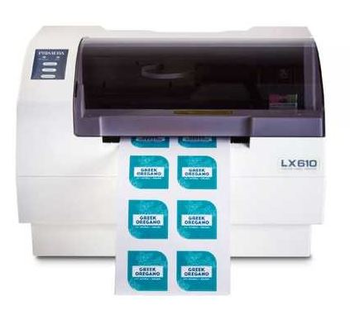

Primera LX610 Colour Label Printer
Download pdf Brochure (1292 KB)Get Up and Running Quickly with the Primera LX610 Colour Label Printer
LX610 is Primera's newest color label printer. It offers the same, professional-quality output as our other label printers, with the addition of a built-in die-cutter. Just import your design and select a cut format. Choose from standard die-cuts – such as squares, circles or rectangles in any size, or a contour cut image that automatically and precisely follows the outline of the image.* You’ll never need to order a custom die again!
The Primera LX610 colour label printer produces gorgeous, professional-quality labels for all your short-run, specialty products. It’s ideal for industries such as gourmet foods, wine and water bottles, personal care and natural products.
Perfect short-run label printer!
- Volume: Up to 3000/day
- Plotter Cutter: Plotter Cutter: Prints & Cuts any Label Shape
- Max Print Width:Max Print Width: 4.1" (108mm) - Die-cutting, 5" (127mm) - Pre-die cut labels
- Print Speed: up Print Speed: Up to 4.5 ips
- Ink: 1 tri-colorInk: 1 tricolor dye or pigment cartridge (ships with dye)
- Cutter: Built-inCutter: Built-in die-cutting knife blade and pizza-wheel cutter
- Label Materials:Label Materials: Continuous stocks are available for digital die-cutting, along with pre-die cut materials
LX610 Features:
- Automatic, built-in die-cutting
- Color inkjet printing at up to 4800 dpi
- Max print width 4.1" - die-cutting / 5" - pre-die cut label
- One high yield tri-color ink cartridge
- "Pizza-wheel" style label cutter
- Includes Bartender UltraLit software for Windows & an ultra-high yield CMY dye ink cartridge
| Print Method: | Thermal inkjet; Dye & Pigment ink |
| Print Resolution: | Up to 1200 x 4800 dpi |
| Print/Cut Speeds: | Print Speeds: 4.5” per second |
| Print Head: | New print head with every cartridge change |
| Ink: | Single high capacity Cyan, Magenta, Yellow ink cartridge, process black |
| Colors: | 16.7 million |
| Color Matching: | ICC color profiles for all Primera-supplied media. Ability to add custom ICC color profiles for other media types. |
| Print Width: | 0.5" (13mm) to 5" (127mm) |
| Media Width: | 2.125" (54mm) to 5.25" (133mm) |
| Media Types: | Roll-fed pressure-sensitive labels, roll-fed tags, fan-fold labels or tag |
| Media Sensing: |
Moveable see-through sensor for die-cut labels; reflective sensor for labels and tags with black stripe; can use continuous and pre-printed labels and tags. |
| Supply Roll: | 6" (152mm) maximum diameter on 3" (76mm) core. |
| Ink Level Warning: | Calculates actual number of prints remaining based upon ink usage of graphics being printed (patent-pending) |
| Indicator Lights: | Power, Ink |
| Controls: | Pause, Feed, Unload |
| Operating Systems: | Windows® 7/8x/10+ |
| Data Interface: | USB 2.0 |
| Label Design Software: | Seagull Scientific Bartender® UltraLite Software version included; can also be used with most other popular label design & graphics programs. |
| Electrical Rating: | 12VDC, 5.0A |
| Power Requirements: | 100-240VAC, 50/60 Hz, 60 watts |
| Certifications: | UL, UL-C, CE, FCC Class A |
| Weight: | 12.5 lbs. (5.7 kg) |
| Dimensions: |
13.6"W x 9.5"H x 17"D (345mmW x 242mmH x 432mmD) |
| Included: |
Bartender UltraLit software for Windows & an ultra-high yield CMY dye ink cartridge. |
Need to make larger labels?
The
LX910 Colour Label Printer offers all of the same great features of the LX500 but prints larger labels up to a maximum width of 203mm.
