MX341P Printer Thermal Transfer Printer

Code: MX341P-A001-0004
TSC
$3700.40 (inc GST)
$3364.00 (exc GST)
Qty:

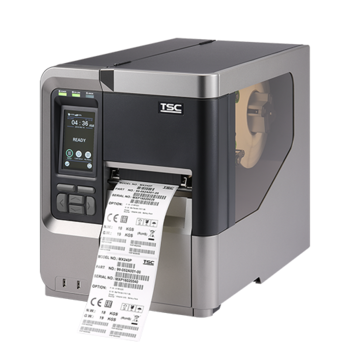

TSC MX341P Industrial Barcode Label Printer

The new MX341P Series industrial thermal printer is ruggedly built for high volume, high-quality label printing. Featuring one of the fastest print speeds in its class, the MX341P Series boosts productivity with quicker processing power, communications, and printing speeds. It is ideal for applications that include manufacturing, logistics, shipping, and product identification.

There are three models available with the MX240P Series. The MX240P prints at 203 dpi at speeds up to an amazing 18-inches per second, MX340P offers a higher 300 dpi resolution at speeds up to 14-inches per second, and the MX640P features 600 dpi high resolution which makes it ideal for printing very small 2D barcodes, graphics, fine print, and other ultra-high-resolution images. All TSC printers feature a standard two-year limited warranty.

FEATURES:

Sophisticated TSC Sense Care
TSC Sense Care can auto scan and detect printhead bad dots during the printing process and support both top and bottom black mark sensors for switching easily.

Dynamic Remote Printer Management
SOTI Connect and TSC Console provide enterprise printer management to manage multiple tasks, reduce maintenance costs and avoid downtime of business-critical devices.

Rugged Design

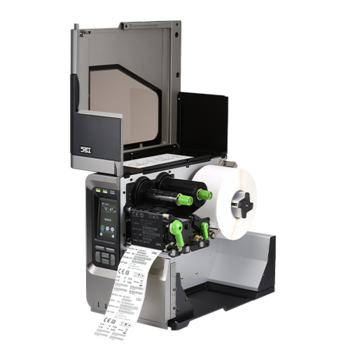

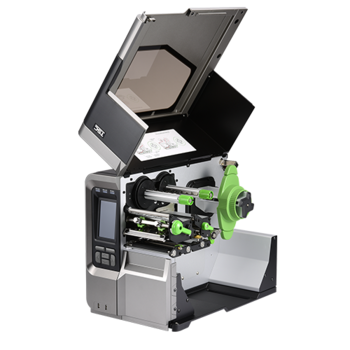

Rugged design with die-casting structure ensures stable media path for outstanding print quality and accuracy. The powerful peel-off capability fits various label sizes.

Multi-Connectivity
MX341P series offers GPIO to support mainstream connector and emulations and optional 802.11 a/b/g/n/ac Wi-Fi with Bluetooth 4.2 combo module.

High-Performance
MX341P Enhanced media drive module with strong belt makes sure high print quality with high speed (up to 18 ips) with less noise and features precise media registration in Tear-off mode (min. 3mm label length).



Printer Specifications Include:

Resolution 300 dpi (12 dots/mm)
Print Method Direct thermal/Thermal transfer
Display Color LCD touchscreen with buttons
Hardwire Connectivity Ethernet
GPIO
Parallel port
Serial RS-232
USB
USB Host
Wireless Connectivity Bluetooth MFi
Enterprise Printer Management TSC Console
Type Industrial
Max. Print Speed 14 ips (356 mm/s)
Max. Print Width 4.09" (104 mm)
Max. Print Length 450" (11,430 mm)
RAM 512 MB SDRAM
Flash 512 MB
Expandable Flash microSD card reader; up to 32 GB
Optional Cutter Regular guillotine cutter, Heavy duty guillotine cutter
Internal Label Capacity 8" (203.2 mm) OD
Max. Media Width 0.78" - 4.49" (20 - 114 mm)
Ribbon & Media Type Continuous, Die-Cut, Black Mark (bottom side or top side black mark), Fan-Fold, Notch, Perforated, Tag, Care Label (outside wound)
Max. Ribbon Length 600 Meters
Max. Ribbon Width 1” ~ 4.5” (25.4 ~ 114.3 mm)
Media Core Diameter 3" (76.2 mm)
Min. Label Length 0.1" (3 mm)
Construction Die-cast print mechanism with large clear media view window
Programming Languages TSPL-EZD
