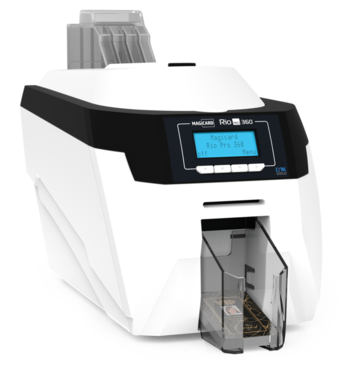

Magicard Rio Pro 360 Single Sided
Magicard Rio Pro 360
Single Side Student ID Card Printer
Magicard Rio Pro 360 Series Single-Side ID Card Printer - Advanced electronics and software platform provide enhanced performance. From the moment you hit print, the 360 instantly gets to work. Full colour cards with HoloKote® print in just 18 seconds click-to-card. The Rio Pro 360 offers a wide colour spectrum so print is even more vibrant and colour rich – which on an ID card means a truer representation of the subject. The Rio Pro 360 is perfect for printing up tp 5000 single sided ID cards per year.
Compact Design Filled with Powerful Features.
Applications:
Education - The Rio Pro’s flexibility, speed and versatility, combined with its security features make it ideal for student IDs, from elementary schools through to university campuses.
Photo ID - The Rio Pro’s custom HoloKote feature enables the addition of a customised logo or security design to every card printed – making it ideal for applications where secure visual identity is required.
Payments - Payment cards can be securely printed and encoded instantly, in-branch using the Rio Pro fitted with an in-line EMV encoder.
Physical Access - A Rio Pro fitted with an in-line smart card encoder can write physical access data to a smart card at the point of issuance.
Facilities - The Rio Pro’s customisable HoloKote visual security watermark, combined with an in-line electronic encoder can rapidly produce high security ID cards for critical facilities and infrastructure.
Logical Access - A Rio Pro fitted with an in-line smart card encoder can write logical access data to a smart card at the point of issuance.
Ideal for these ID Card Applications:
- Government - Swipe ID Cards
-
Healthcare - Lanyard ID Cards
-
Schools - Student ID Cards
-
Universities - Student ID Cards
-
Retail - Membership ID Cards
PRINTING SPECIFICATIONS
Print mode
Colour dye sublimation, monochrome thermal printing and rewritable technology
Print speed - single-sided
Colour: 18 seconds per card /190 cards per hour.
Monochrome: 5 seconds per card/ 750 cards per hour
Card Security
A HoloKote security watermark can be printed across the card surface. With the Rio Pro
360, this watermark can be customised to an organisation’s logo, or some other unique
security design. LYNK enables the secure online delivery of up to ten bespoke HoloKotes®
to the printer through the driver interface.
When used with HoloPatch® cards, one area of the HoloKote® watermark can be highlighted
as a high visibility security seal.
Encoding security options
Magnetic stripe encoding: HiCo and LoCo ISO 7811, JIS2.
Smart card encoding: Contact chip, MIFARE®, DESFire® and iClass®. Others available.
Printer interfaces
High Speed USB 2.0, USB 3.0 compatible - Type B, 10/100 Ethernet. 2x internal USB 2.0
(one host) - Type A.
Driver compatibility
Windows XP, Vista, 7, 8, 10 (32 and 64bit) Windows server 2003 R2 SP2, 2008, 2012,
2016. Mac OS X 10.9.0 upwards. Linux with CUPS support.
Weight
4.7kg /10.4 lbs.
Power source
External power supply 100-240V 50-60Hz autoranging.
Dimensions
470mm L x 220mm W x 300mm H / 18.5” L x 8.6” W x 12” H including feeder and stacker.
