HONEYWELL SCANNER ORBIT 7190G 1D/2D HYBRID USB BLACK

Code: 2040104SCANNERS
Zebra
$338.75 (inc GST)
$307.95 (exc GST)
Qty:

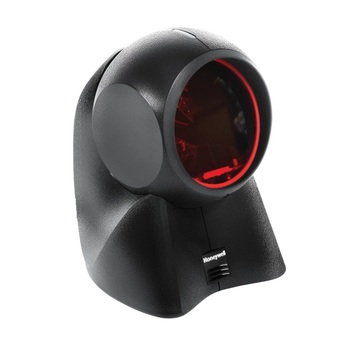

Honeywell Barcode Scanner - Orbit 7190g 1D/2D Hybrid, USB in Black

The Honeywell Orbit 7190g scanner continues the proven, superior 1D laser scanning performance of Orbit series scanners – but adds an area imager for seamless scanning of digital 1D, 2D and PDF codes in a single, convenient device. To speed up retail checkouts, the Orbit 7190g scanner features a unique dual-modes design that is optimised for both the cashier and customer – enabling the seamless product barcode scanning and scanning of digital codes off of customer's smartphones.

FEATURES:

  • Breakthrough Hybrid Technology - The Orbit 7190g scanner integrates both a laser and an imager into a single presentation scanner – no need to buy a separate scanner for printed 1D and digital 1D, 2D and PDF barcodes reading.

  • Dual-Working Modes - With dual-working modes, the scanner is optimised for both scanning digital codes off customer smartphones and scanning merchandise codes by the cashier at the register.

  • Superior Scanning Performance - A 20-line omnidirectional laser pattern maintains the proven 1D scanning performance of existing Orbit scanners. With leading Honeywell imaging technology, the scanner reads smartphone coupons and ID cards with ease.

  • Adjustable Scan Head - The award-winning shape enables handheld scanning of large, bulky items. The adjustable scan head even allows cashiers to tilt the scanner 30° for targeted scanning of larger products.

  • Multi-Interface Design - Automatic interface detection enables the scanner to configure itself to the appropriate interface upon connection – eliminating the tedious task of scanning programming barcodes.

PHYSICAL CHARACTERISTICS

Dimensions (L x W x H): 108 mm x 103 mm x 148 mm (4.3 in x 4.1 in x 5.8 in)

Weight: 410 g (14.5 oz)


ELECTRICAL CHARACTERISTICS

Input Voltage: 5 VDC ±0.25 V

Operating Power: 472 mA @ 5 V

Standby Power: 255 mA @ 5 V

Host System Interfaces: USB, RS-232,

Keyboard Wedge, IBM468xx (RS485)

EAS Features: E AS with interlock and integrated RF E AS antenna (E AS model)


ENVIRONMENTAL

Storage Temperature: -40°C to 60°C (-40°F to 140°F)

Operating Temperature: 0°C to 40°C (32°F to 104°F)

Humidity: 5% to 95% relative humidity, non-condensing

Drop: Designed to withstand 1.2 m (4 ft) drops

Environmental Sealing: Sealed to resist airborne particulate contaminants

Light Levels

Laser: 4842 Lux

Imager: 100000 Lux


SCAN PERFORMANCE

Scan Pattern: Hybrid, Omnidirectional Laser

(5 fields of 4 parallel lines) and Area Imager (640 x 480 pixel array)

Scan SpeedOmnidirectional: 1120 scan lines per second FPS: 3

Scan Angle (Imager)

Horizontal: 40.0°

Vertical: 30.5°

Symbol Contrast: 35% minimum reflectance difference

Pitch, Skew

Laser: 60°, 60° Imager: 60°, 70°

Decode Capability

Laser: Reads standard 1D, GS1 DataBar symbologies Imager:

Reads standard 1D, PDF and 2D symbologies

Warranty: Three-year factory warranty
