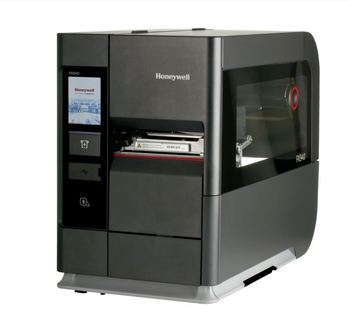

Honeywell PX940 Thermal Transfer Barcode Printer 300 DPI with Verifier
The PX940 series takes industrial printing to a new level of accuracy and simplicity by providing customers with error-free precision printing, increasing production efficiency and reducing operational costs.
The PX940 printers are suited for transportation and logistics, pharmaceuticals and healthcare, shipping and distribution centers, industrial manufacturing, automotive parts suppliers, and applications that are regulated and require high precision and error-free printing. The PX940 printer is available in two versions: one with the integrated verifier, and an option without the integrated verifier. Both versions are available with standard features such as Bluetooth® and smart printing capability, in which users can configure and fine-tune settings without the need for a host computer.
Features:
Defect-Free Labels, Every Time - Integrated label verification technology checks and ensures that labels print accurately every time; instantly notifies you of pass/fail status and ANSI grade.
Precision Printing for Small Labels - Extremely precise printing of up to +/-0.3 mm (0.012 in) virtually eliminates poor-quality, unreadable labels and barcodes
Intelligent Asset Management and Monitoring - Operational Intelligence software provides predictive analytics and data on printer health to help managers oversee their entire printer fleet and proactively prevent issues, ensuring maximum uptime.
No PC Required - Smart printing capability allows you to configure settings on the printer without the need for a host computer.
Simple and Intuitive to Use and Maintain - Easy to use and maintain, with a color multilingual touchscreen interface, quick side-loading design, and a built-in printhead cleaning routine that provides optimal print quality and a longer printhead life.
Printer Specifications include:
STANDARD Print Method:
Thermal Transfer and Direct Thermal
3.5 in color touch LCD Foldable clear media door
Dual Label Stop Sensor for precision printing
Dual Core 1 GB processor (ARM® Cortex® A9 core)
256 MB Flash memory
1 GB DDR3 SDRAM
Multi-GB USB memory device (FAT16/FAT32)
Internal real-time clock
MECHANICAL PX940/PX940
Verifier Version: L x H x W: 506 mm x 398.7 mm x 261 mm (19.92 in x 15.70 in x 10.28 in)
Weight: 23 kg (50.71 lbs)
PX940: Weight: 23 kg (50.71 lbs)
PX940 Verifier Version: Weight: 23.5 kg (51.81 lbs)
PRINT SPECIFICATIONS
Print Resolution: At 203 dpi: 8 dots/mm
At 300 dpi: 11.8 dots/mm
Print Speed: At 203 dpi: 50–350 mm/s (2–14 ips)
At 300 dpi: 50–300 mm/s (2–12 ips)
At 600 dpi: 25–150 mm/s (1–6 ips)
Maximum Width: At 203 dpi: 108 mm (4.25 in)
At 300 dpi: 105.7 mm (4.16 in)
At 600 dpi: 105.6 mm (4.16 in)
Maximum Continuous Print Length:
At 203 dpi: 4.8 m (15.75 ft)
At 300 dpi: 2.2 m (7.22 ft)
At 600 dpi: 0.55 m (1.81 ft)
BARCODE VERIFIER SPECIFICATION (PX940 Verifier Version only)
Scan Resolution: 600 dpi Maximum
Scan Width: 108 mm (4.25 in)
Light Source: 660 nm Maximum
Verification Speed: At 203 dpi and 300 dpi: 200 mm/s (8 ips)
At 600 dpi: 150 mm/s (6 ips)
Barcode Orientation: Linear (1D) Barcode: Picket or Ladder
2-Dimensional (2D) Barcode: 4 directions
Barcode Verification Modes: Linear (1D) barcode verification conforming to ISO/IEC 15146-2016; 2-Dimensional (2D) barcode verification conforming to ISO/IEC 154152011; Read/No Read Barcode verification
Minimum Linear (1D)
Bar Width: 10 mils (0.254 mm)
Minimum 2D Cell Size: 15 mils (0.381 mm)
Supported Symbologies: Code 39, HIBC 39, Code 128, ISBT 128, HIBC 128, EAN 8, EAN 13, EAN 128, UPC A, UPC E, Interleaved 2 of 5, ITF 14, Data Matrix, ISBT Data Matrix
Maximum Verification Length: 304.8 mm (12 in)
Maximum Voiding Length: Batch Print: 152.4 mm (6 in)
On Demand Mode: 304.8 mm (12 in)
Maximum Number of Barcodes per Label: 32
Minimum Media Opacity: 80%
Maximum Operating Ambient Light: 5000 lux
Verification Reports: Statistics and detailed reporting is available through printer web page, USB thumb drive, Verifier Integration Interface (VII), or FTP
MEDIA SPECIFICATIONS
Media Type: Gap, black mark, tag, hole, notch, or continuous
Maximum/Minimum Width (Label and Liner): 114/20 mm (4.5/0.79 in)
Minimum Label Length: Tear-Off Mode: 3.0 mm (0.12 in)
Self-Strip Mode: 12.7 mm (0.5 in)
Rewind Mode: 6.0 mm (0.24 in)
Thickness (Label and Liner): 3 mil to 10 mil
Configuration: Roll-fed (wound out only) or fanfold
Label Roll Maximum Diameter: 212.7 mm (8.375 in)
Label Roll Core: 76 mm (3 in) or 388 mm (1.5 in)
RIBBON SPECIFICATIONS
Ribbon Spindle: Both ribbon coated side in and out Roll Max.
Diameter: 80 mm (3.15 in), approximately 450 m (1,476 ft)
Core ID: 25 mm (1 in) Maximum/Minimum Width
(Ribbon and Core): 110/51 mm (4.33/2.0 in)
Type: Wax, mid-range, resin
