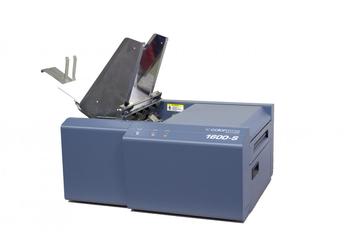

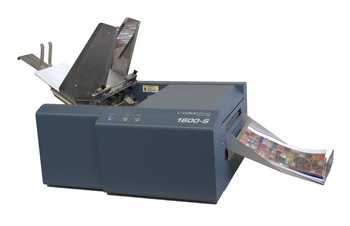

Colordyne CDT 1600S colour sheet-fed printer
Download pdf Brochure (3527 KB)No longer available. Please check out the other Memjet printers here.
Colordyne CDT 1600S colour sheet-fed printer
Powered by Memjet Technology
The Colordyne CDT-1600S colour sheet-fed printer delivers pinpoint precision full-variable colour at speeds of 304.88mm per second (1600 x 800 dpi) and 152.4mm per second (1600 x1600 dpi). All of this with a printing range of 76.2 – 215mm width. Colordyne printers are powered by Memjet Technologies and print lightning fast.
The Colordyne CDT-1600S makes easy work of:
-
Retail tags, POP, shelf talkers and signage
-
Warehouse and distributional marketing materials
-
Business brochure materials
-
Invoice personalisation, envelopes, coupons and inserts
Print method
- Memjet® Inkjet Technology
Print head configuration
- Single Memjet print head
Maximum dot rate
- Up to 740 Million ink droplets per second
Ink colors
- Five channels per print head CMYKK
Print speed
- 152.4mm / second high quality mode, 304.8 / second in normal quality
Print resolution
- High Quality is 1600 x 1600 dpi, Normal Quality is 1600 x 800 dpi
Ink Cartridges
- 5 ink cartridges (C,M,Y,K,K ) - 250 ml
Media types
- Sheet material (label, tag, paper, envelope)
Media thickness
- 0.102mm to 0.508mm / 0.004 to 0.020 inches
Maximum print width
- 215.9mm / 8.5"
Maximum print lenght
- 431.8mm / 17"
Minimum media lenght
- 106.7mm / 4.2"
Maximum media length
- 431.8mm / 17''
Minimum media width
- 76.2 / 3"
Maximum media width
- 241.3mm / 9.5"
Dimensions
- 508mm W x 609.6mm L x 438.2mm H (20"W x 24"L x 17.3"H)
Weight
- 31.75 kgs / 70 lbs.
Interface
- USB and Ethernet
Construction
- Solid steel made in the USA
Optional accessory
- Delivery tray
Optional software
- Wasatch SoftRIP Color Management Software
- NiceLabel Professional Label Design Software
